（五）SFQ阻火管
|
| 氧气管道阻火器和氧气管道阀门后阻火器采用特种铜合和不锈钢、碳钢焊接而成。它在氧气管道中具有阻火特点，可有效力地切断火源，杜绝管道中燃爆事故的发生，在管道输氧过程中，愈来愈显示它的必要性与阻燃的优越性。 |
|
公称压力2.9MPa
|
|
规格（mm)
|
氧气管道阻火器
型号
|

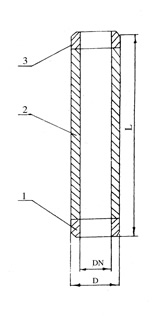

外型尺寸
|
氧化管道阀门后阻
火器
型号
|
外型尺寸
|
|
DN(mm)
|
SF-QZ
|
D
|
L
|
SF-QZH
|
D
|
L
|
|
15
|
SF-QZ-1.5TL
|
18
|
600
|
SF-QZH-1.5TL
|
18
|
1598+2
|
|
20
|
SF-QZ-2.0TL
|
25
|
600
|
SF-QZH-2.0TL
|
25
|
1598+2
|
|
25
|
SF-QZ-2.5TL
|
32
|
600
|
SF-QZH-2.5TL
|
32
|
1598+2
|
|
32
|
SF-QZ-3.2TL
|
38
|
600
|
SF-QZH-3.2TL
|
38
|
1598+2
|
|
40
|
SF-QZ-4.0TL
|
48
|
600
|
SF-QZH-4.0TL
|
48
|
1598+2
|
|
50
|
SF-QZ-5.0TL
|
57
|
598+2
|
SF-QZH-5.0TL
|
57
|
1598+2
|
|
65
|
SF-QZ-6.5TL
|
76
|
598+2
|
SF-QZH-6.5TL
|
89
|
1598+2
|
|
80
|
SF-QZ-8.0TL
|
89
|
598+2
|
SF-QZH-8.0TL
|
89
|
1598+2
|
|
100
|
SF-QZ-10TL
|
108
|
698+2
|
SF-QZH-10TL
|
108
|
1698+2
|
|
125
|
SF-QZ-12.5TL
|
133
|
698+2
|
SF-QZH-12.5TL
|
133
|
1698+2
|
|
150
|
SF-QZ-15TL
|
159
|
698+2
|
SF-QZH-15TL
|
159
|
1698+2
|
|
200
|
SF-QZ-20TL
|
219
|
798+2
|
SF-QZH-20TL
|
219
|
1700
|
|
250
|
SF-QZ-25TL
|
273
|
798+2
|
SF-QZH-25TL
|
273
|
1700
|
|
300
|
SF-QZ-30TL
|
325
|
798+2
|
SF-QZH-30TL
|
325
|
1700
|
|
350
|
SF-QZ-35TL
|
377
|
798+2
|
SF-QZH-35TL
|
377
|
1800
|
|
400
|
SF-QZ-40TL
|
426
|
798+2
|
SF-QZH-40TL
|
426
|
1800
|
|
|
|
| |
| |
| |
|
